Tilia Creations

Monza Modular

Monza Modular

Regular price £850.00 GBP
Regular price Sale price £850.00 GBP
Sale Sold out
VAT included. Delivery calculated at checkout.
Finish: Matte Black (Fine Texture)
Width (cm)
Length (cm)
Quantity

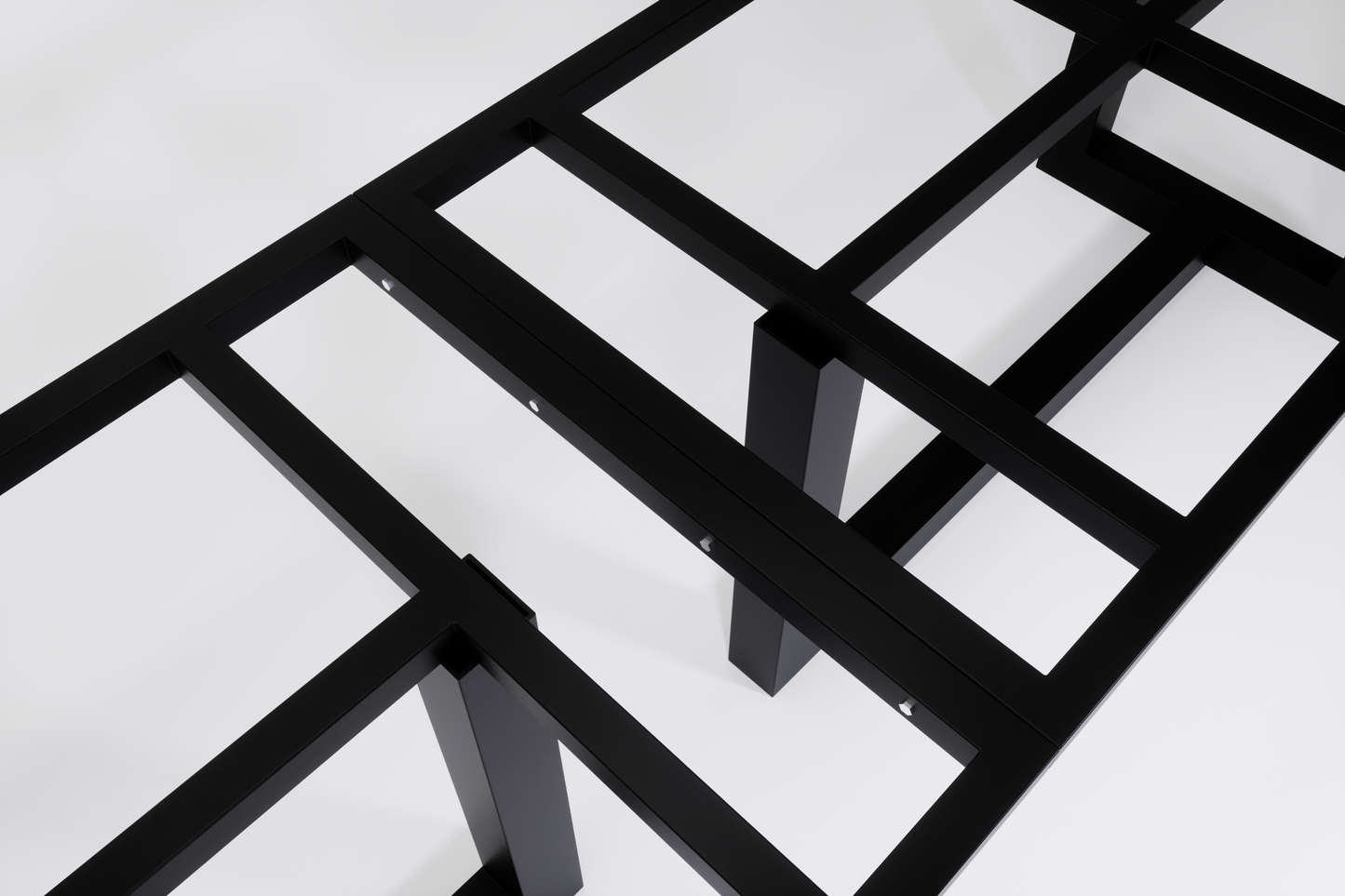

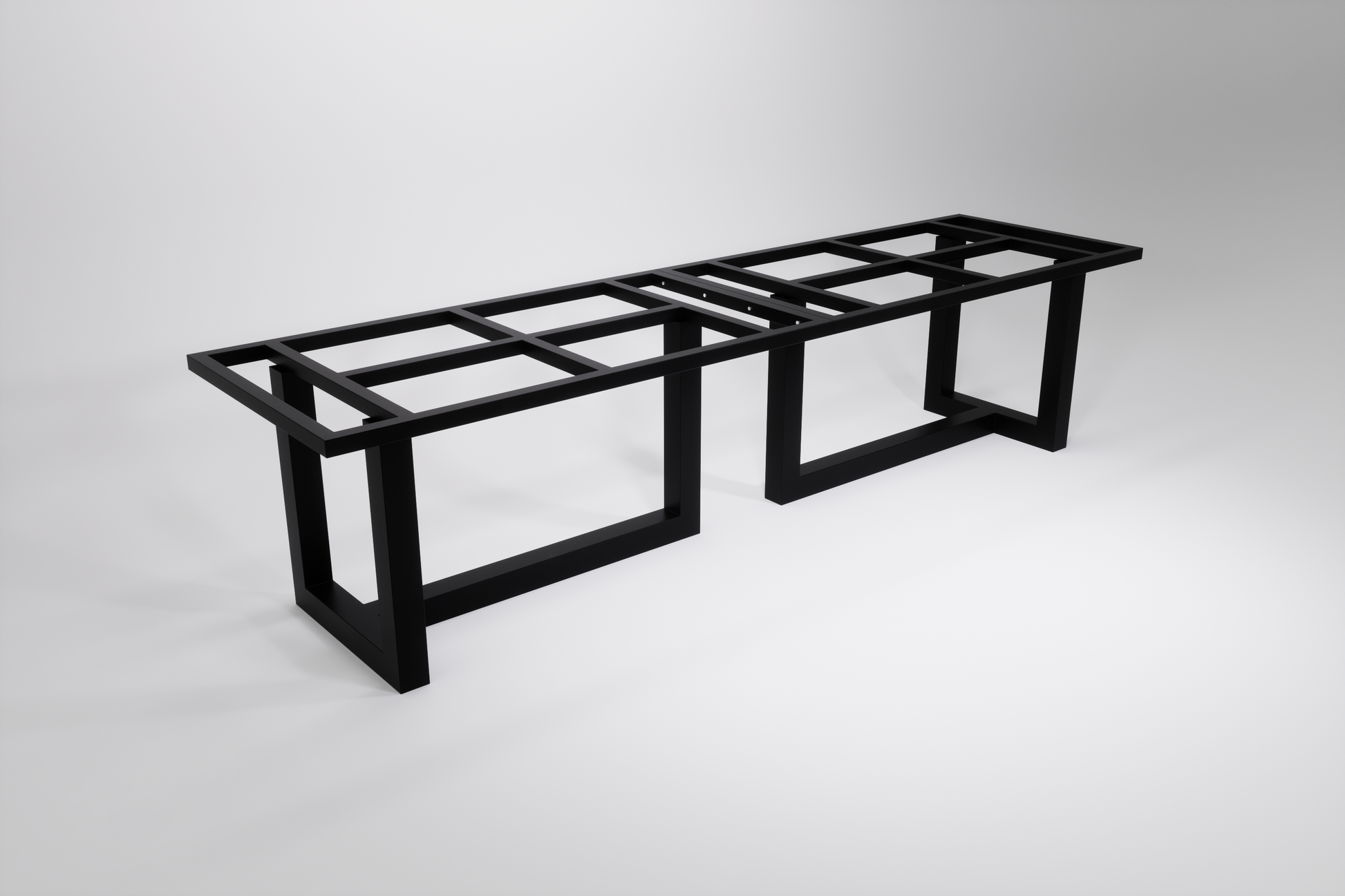

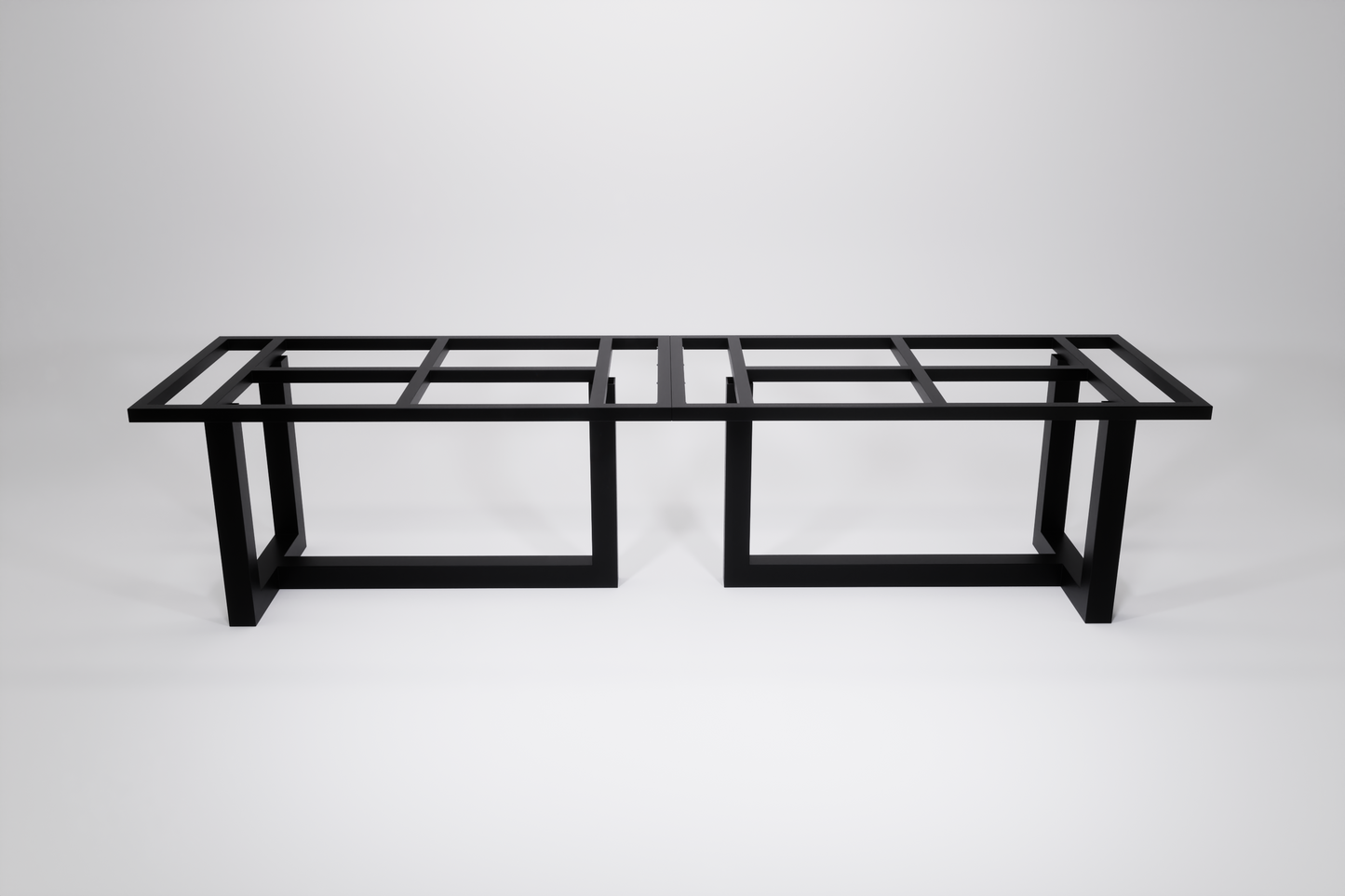

The Monza base is part of our modular heavy-duty base collection. The modular frames are designed to bolt together as two sections to form one epic table base, forming an overall total length of up to 440 cm (4.4m).

Ideal for large dining tables, board tables, meeting tables, and more.

Details

- Standard height: 72 cm
- Materials: 80x80x3 mm (legs) and, 40x40x3 mmm (sub-frames)
- Fixing holes: 6x 7 mm countersunk fixing holes per frame
- Includes felt foot pads to protect the floor surface
- Weight capacity of 500 kg



  • For standard items order online. For custom orders please reach out via the contact page
  • Processing time typically 3-4 weeks
  • Transit time 1-2 days for England and Wales. Scotland 2-3 days.

Lifetime Guarantee

We give a lifetime guarantee on all of our products. This guarantee applies strictly to UK mainland residents and covers against manufacturing defects. The guarantee excludes damage resulting from ordinary wear and tear, accidental damage, improper use, or environmental weathering.

Customisation

To customise the size, configuration or finish of this product or any other product in our collections, please use the custom order form

Finish

  • Semi-matte black powder coat. RAL number 9005. A durable, uniform finish. Protects against rust.
  • Specific RAL classic colour powder coat. Choose a 4-digit colour code of your choice and tell us the number using the special instruction box at the checkout.
  • All our bronze coatings are high quality architectural finishes with a metallic matt finish.

To order paint samples click here

To find the right RAL colour for you click here

Material

Industrial Grade 3 mm Mild Steel

Processing Time

For our current processing time, please see the notification bar at top of page.

Pallet Delivery

Shipping costs and transit times

England & Wales £99, 1-2 working days.

Scotland 2-3 working days.

Free delivery on orders over £1500.

The lead time at the top of the page applies to all made-to-order items.

To view our shipping policy, please use the following link: https://tiliacreations.com/policies/shipping-policy

Compatibility

Built for Any Table Top - From Solid Wood to Natural Stone

Whether you’re mounting an old wooden slab or heavy quartz, this frame is fully compatible with all surface materials.

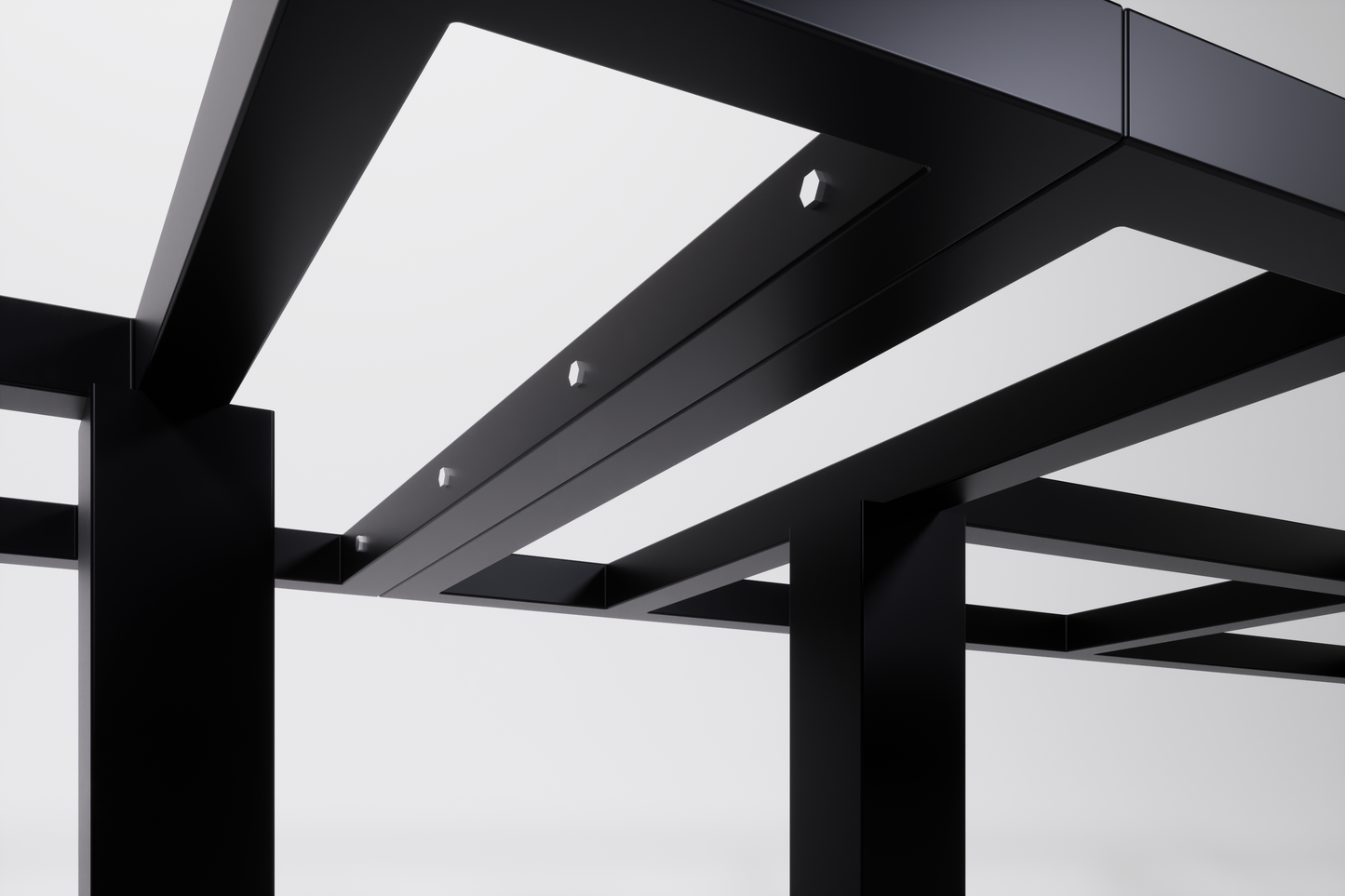

For wooden table top installations there are eight pre-drilled countersunk 7mm holes in every support apron.

Stone worktops are generally secured to the support apron using flexible adhesive. Please consult your stone fabricator or installer for more details.

Size Guide

Finding the right table base ensures your table is structurally safe, visually balanced, and comfortable to sit at. Follow these simple steps to choose the correct dimensions.

The following information is provided for general guidance only. Please consult your specific worktop manufacturer or qualified installer to ensure correct and safe installation for your specific materials.

1. Simple 3-Step Sizing Process

  1. Measure Your Table Top: Note the total length and width in centimeters.
  2. Calculate Maximum Overhang: Subtract the maximum safe overhang from both sides to find your minimum base size.
  3. Select Your Base: Choose a frame or leg set that fits within those target dimensions while maintaining overhang safety limits.

2. Maximum Unsupported Overhang Limits

  • 20 mm Quartz & Granite: Maximum unsupported overhang of 30 cm per side.
  • Solid Wood (20–40 mm): Maximum overhang of 25–40 cm per side (depending on wood species and grain direction).
  • Ceramic & Porcelain: Typically requires tighter support (often 10–15 cm max overhang). Always verify specs with your fabricator.

Example Calculation for Monza Table:
If your 40 mm wooden top is 300 cm long × 150 cm wide:

  • Length: 300 cm – (2 × 30 cm overhang) = 240 cm base length
  • Width: 130 cm – (2 × 30 cm overhang) = 70 cm base width
  • Ideal Base Dimensions: ~240 cm long × 70 cm wide

Made in Britain

We are proudly committed to manufacturing in the UK. All of our products are skillfully handcrafted in our small workshop, located in East Yorkshire.
